Color steel plate roof support system-angle chi type tile surface

With rich esperience in aluminum processing ,good and fully automated production lines, a perfect supply chain ,and strict design and verification ,our products hao won national and international recognition and perference in a very short time. We have successfully provided high quality accessory photovoltaic products for many photovoltaic assembly enterprises ,photovoltaic surface power stations as well as photovoltaic roof power station projects.

Classification:

Color steel tile roof support system

E-mail:

yr@yuanlvpv.com

Product Consulting

Product Description

Color steel plate bracket technology:

Color steel plate is a color-coated steel plate, which is cold-bent by rolling to form a variety of corrugated plates. It is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure roofs, walls, and interior and exterior walls. Decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain protection, long life, maintenance-free, etc., and has been widely promoted and applied. The common types of color steel tiles are: 460, 760, 750, 820, 840, 900, 1050, 850, 880 and other models. At present, the application field of the color steel tile support system covers all types of color steel tiles, from upright locking edge, angle Chi Ⅲ, bite corrugated plate type and other irregular color steel tiles, all types of support systems are currently in many large domestic and foreign It is applied intensively in photovoltaic power generation projects and is highly recognized by the photovoltaic expert group. There are three common color steel tile brackets:

1. Upright lock-edge color steel tile bracket

2. Angle Chi Ⅲ color steel tile bracket

3. Corrugated sandwich panel color steel tile bracket

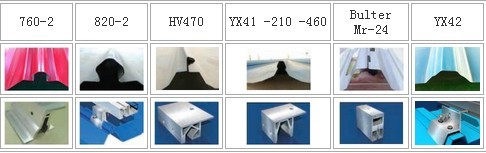

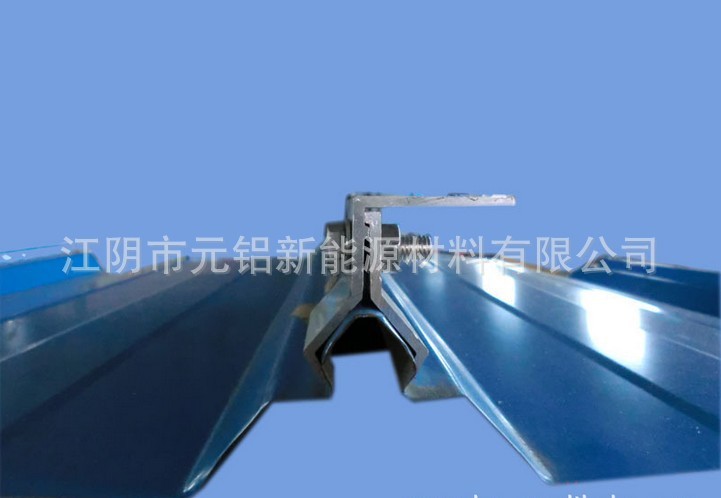

760 Angle Chi III fixture

Function: Clamp the protruding part of the color steel plate and support the aluminum rail

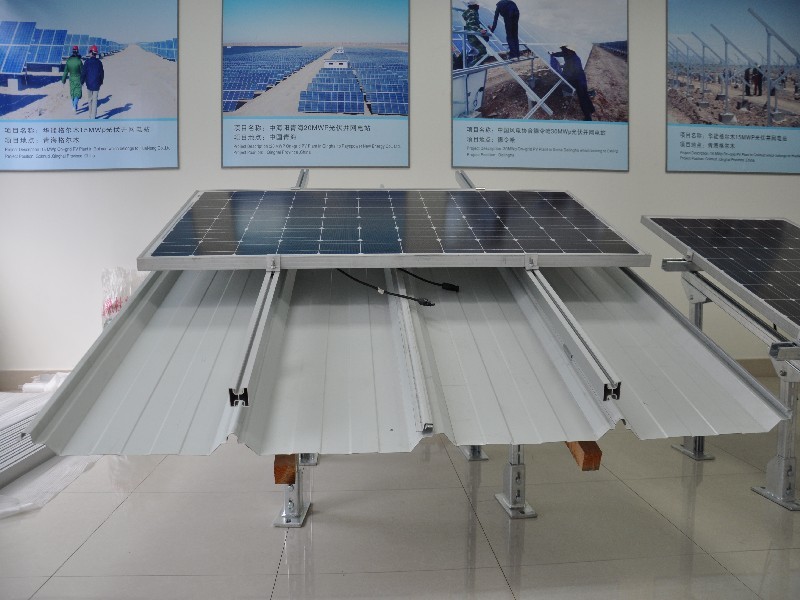

Color steel plate roofing photovoltaic mounting system solution-for the popular color steel plate in the market, we specially develop and design the mounting system.

For the current domestic roofing systems, upright locking, bite-type, and snap-type roofing panels are basically used. We have produced fixed fixtures for various roofing, which can make the photovoltaic bracket and roofing perfect without damaging the roofing Combine.

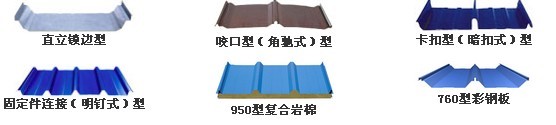

Color steel tile roof type:

Color steel tile clamp buckle series:

Yuan aluminum color steel tile roof support system

Installation location: inclined roof

Installation angle: 5 degrees -40 degrees

Snow pressure: 1.4KN / m

Wind speed: 42m / s

Component arrangement: horizontal or vertical

Component type: crystalline silicon or amorphous silicon

Material: 6063 aluminum alloy and 304 stainless steel

Warranty period: 15 years

Aluminum alloy windproof fixture SR-RC-25

Material: AL6063-T5

Surface treatment: anodizing

Size: can be customized according to requirements
